Hydraulic Busbar Cutting Tools

Home >  Products >  Hydraulic Busbar Tools >  Hydraulic Busbar Cutting Tools

BC-200V Busbar Cutting Tool 30t



  • Introduction
  • More Products

Introduction

Products Description

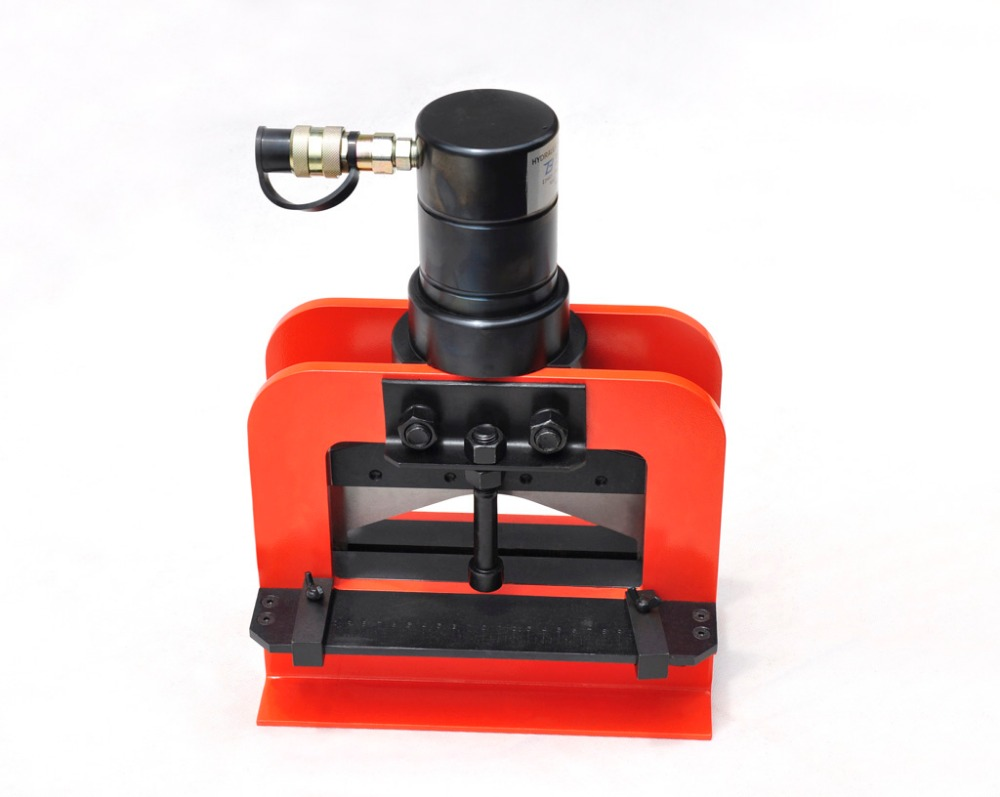

BC-200V Busbar Cutting Tool 30t supplier

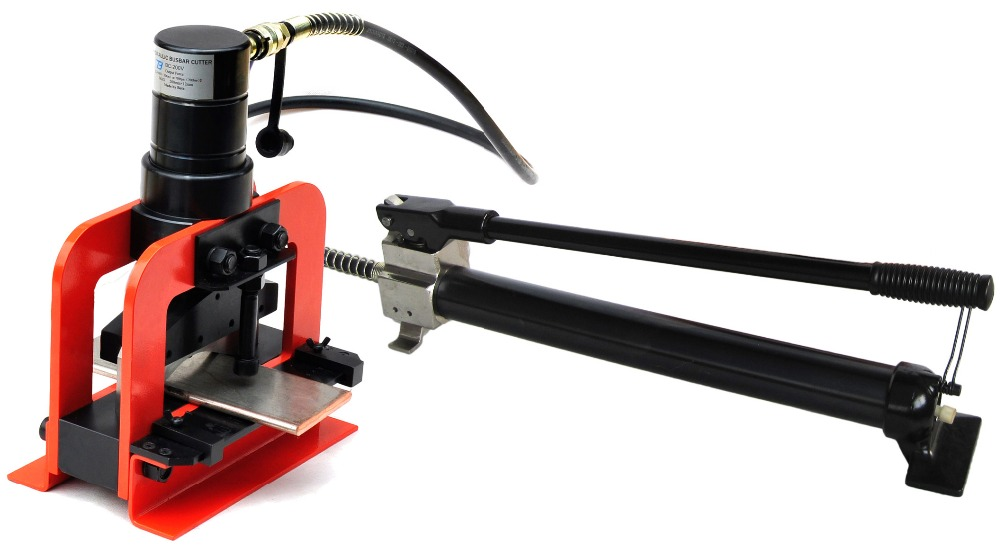

BC-200V Busbar Cutting Tool 30t factory
Model
BC-200V
Output Force
30T
Rated Pressure
700bar
Max Cutting Thickness
12mm
Max Cutting Width
200mm
Amount of Oil Required
275ml
Weight
35kg
Dimensions
31*20*42cm
Packing
Steel case
Packing Size
38*27*46cm
Features:
1.Quick cutting:Quick cut with smooth cut surface, chipping, cut waste easy to recyle
2.V type blade:V-type blade ensure cut surface not depressed, efficient contact area of busbar
3.Scale plate:Scale engraved helps the center adjustment easier
4.Light weight body:Quick coupler for easy disassembly
5.Quick coupler:Powered by single acting hydraulic pump
6.Used to cut Cu and Al busbar





Fashioned with simplicity of use in mind, this has the capacity of cutting copper busbars as much as 200mm by 12mm in space, featuring its powerful 30-ton cutting force and excellent cutting precision. The BC-200V is the ideal machine to the electrical industry which requires exact and accurate cutting results.



This was established using top-quality materials, including a hardened steel blade that is capable of cutting the most challenging materials with ease. The blade is easily replaceable, making maintenance and repairs easy and hassle-free.



It was also beautifully made with safety in mind. The hydraulic system guarantees smooth and controlled cutting with minimal threat of damage. These devices also feature an automatic pressure valve that prevents overloading and protects your investment.



With a compact design a weight of only 120kg, this is uncomplicated to carry around and position in your workshop. In addition, it features an integral foot control, making procedure effortless and convenient for many users.



The BC-200V 30T Hydraulic Copper Busbar Cutting Machine from BETE was made to satisfy the high demands of the current electrical industry. Whether you're working for a large project for accurate cuts or just searching for a simple yet effective machine to deal with your daily cutting requirements, the BC-200V has got you covered.
